Reliance Quick Acting/ Fast Blow Fuses
6.3 x 32 mm - RQC

RQC Fuses are Low Breaking Capacity Quick Acting Fuses Manufactured As PerCEI/ IEC 127-2

Mechanical Dimensions

Dimensions	Milimeter
Diameter	6.35 + 0.1
Length	31.8 + 0.7/ -0.8

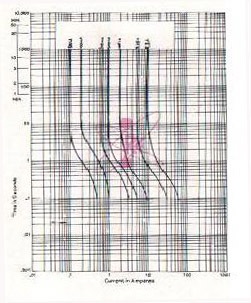

Electrical Characteristics

Rated  Current	2 In	2.75 In		4 In		10 In
	Max.	Min.	Max.	Min.	Max.	Max.
50 mA to 100mA(Inclusive)	20 sec	2 ms	200 ms	1 ms	30 ms	5 ms
Above 100mA to 6.3 Amp	20 Sec	20 ms	1500 ms	8 ms	400 ms	80 ms

Catalog Number	Current Rating
RQC 100	100 mA
RQC 125	125 mA
RQC 150	150 mA
RQC 200	200 mA
RQC 250	250 mA
RQC 300	300 mA
RQC 315	315 mA
RQC 350	350 mA
RQC 400	400 mA
RQC 500	500 mA
RQC 630	630 mA
RQC 800	800 mA
RQC 1000	1 A
RQC 1250	1 A 25
RQC 1500	1 A 5
RQC 1600	1 A 6
RQC 2000	2 A
RQC 2500	2 A 5
RQC 3000	3 A
RQC 3150	3 A 15
RQC 4000	4 A
RQC 5000	5 A
RQC 6300	6 A 3
RQC 8000	8 A
RQC 10000	10 A
